A free creation of a format-independent infographic on the nuclear disaster in Fukushima. On March 11, 2011 at 2:46 pm local time, an earthquake struck off the coast of Japan, triggering a tsunami and causing one of the worst nuclear disasters since Chernobyl.
Partly published in AROUND THE WORLD by Die Gestalten Verlag.
![Infografik zu Folgen der Katastrophe in Fukushima, Japan](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/aa5bdb84-055d-4ab5-8b86-b367de6a90ad_rw_3840.png?h=b1fc0abb2d10339e6ab02f4478998f39)

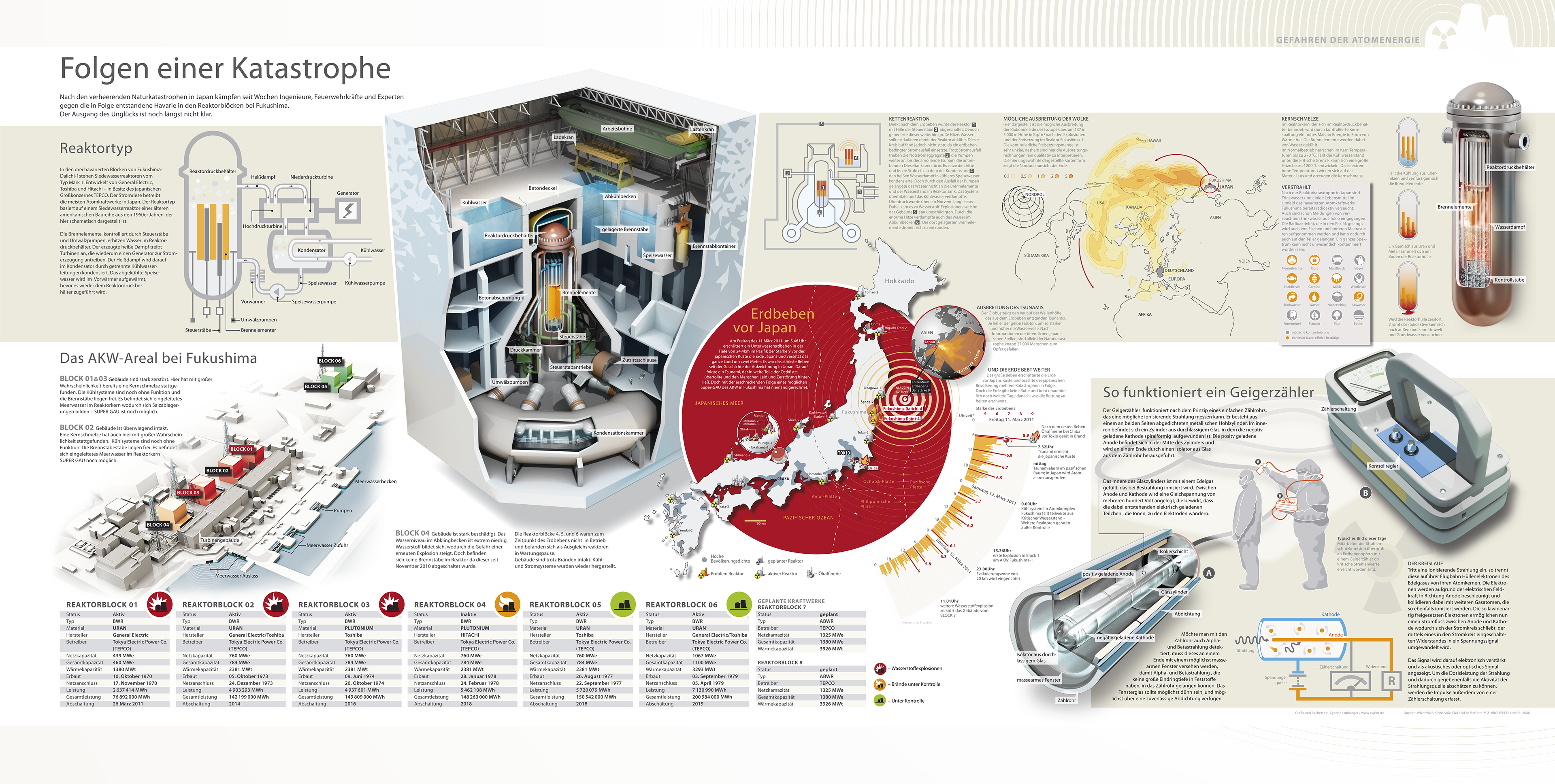

Format-independent infografic (german)
![Reactor type Mark 1 of TEPCO](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/0ac19a04-44a8-48d8-8e1e-5564ff5edf21_rw_1920.png?h=81283406a116f8466da2a22566b31106)

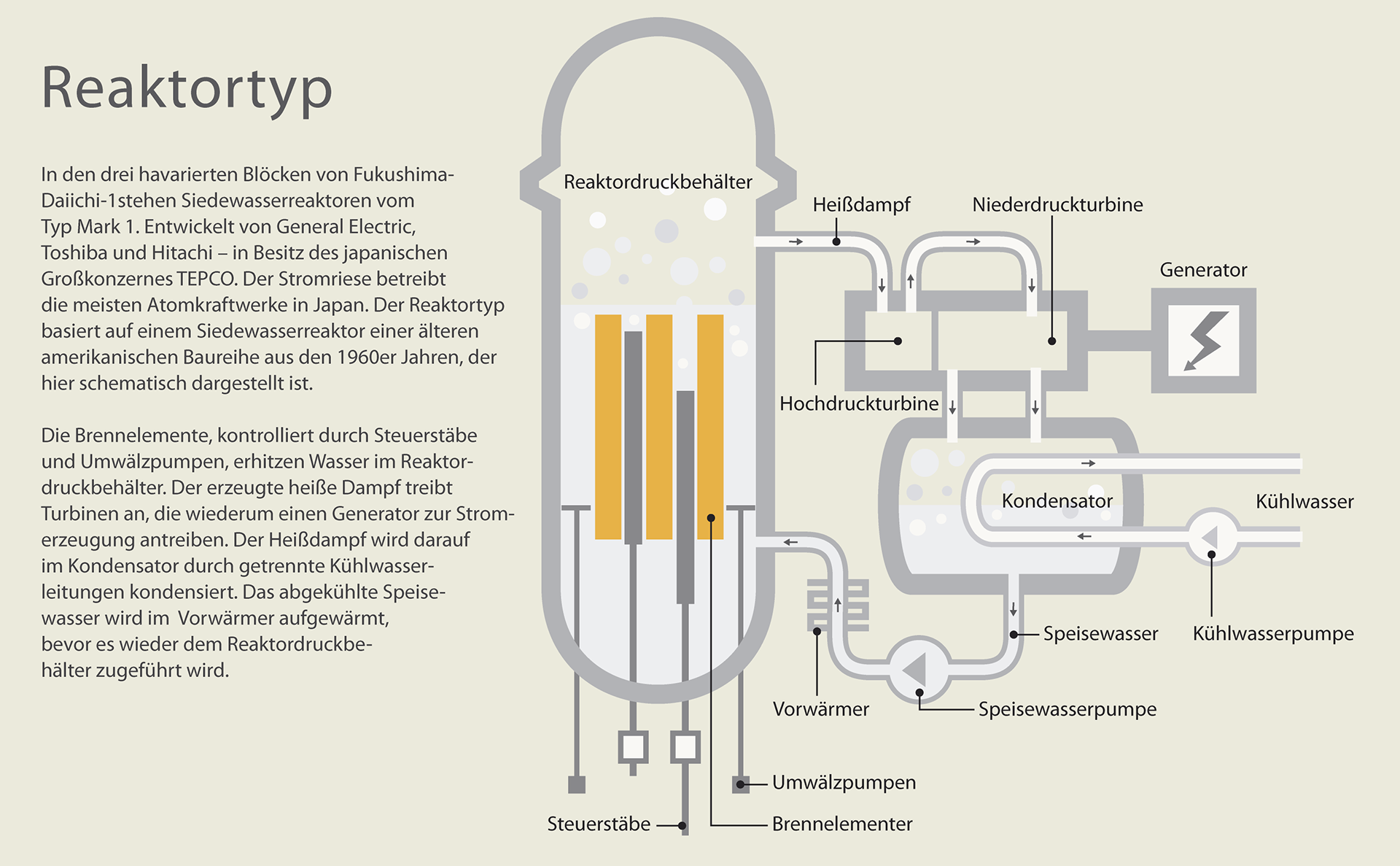

Reactor type Mark 1 of TEPCO
![Chain reaction in Fukushima](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/1b3ee59a-982e-4d06-b47b-ebdcc59c367c_rw_1920.png?h=3ee43c3e20a7b1dc74e2c095337128cf)

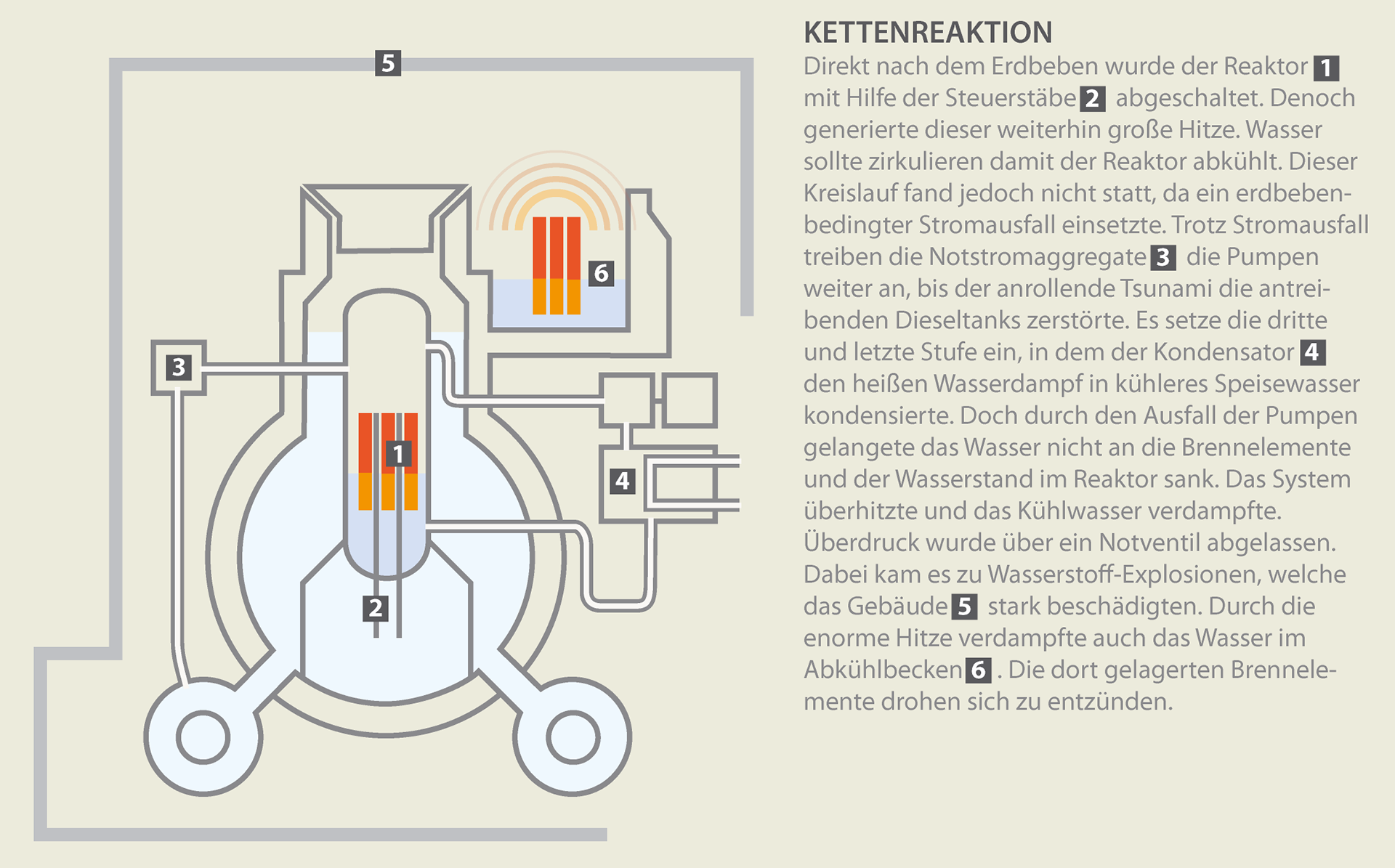

Chain reaction in Fukushima
![Dispersal of the radioactive cloud](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/149f7a15-07a0-4cf4-8257-03bf735ee62b_rw_1920.png?h=384d630d3bf47f14095600a744ddbe0c)

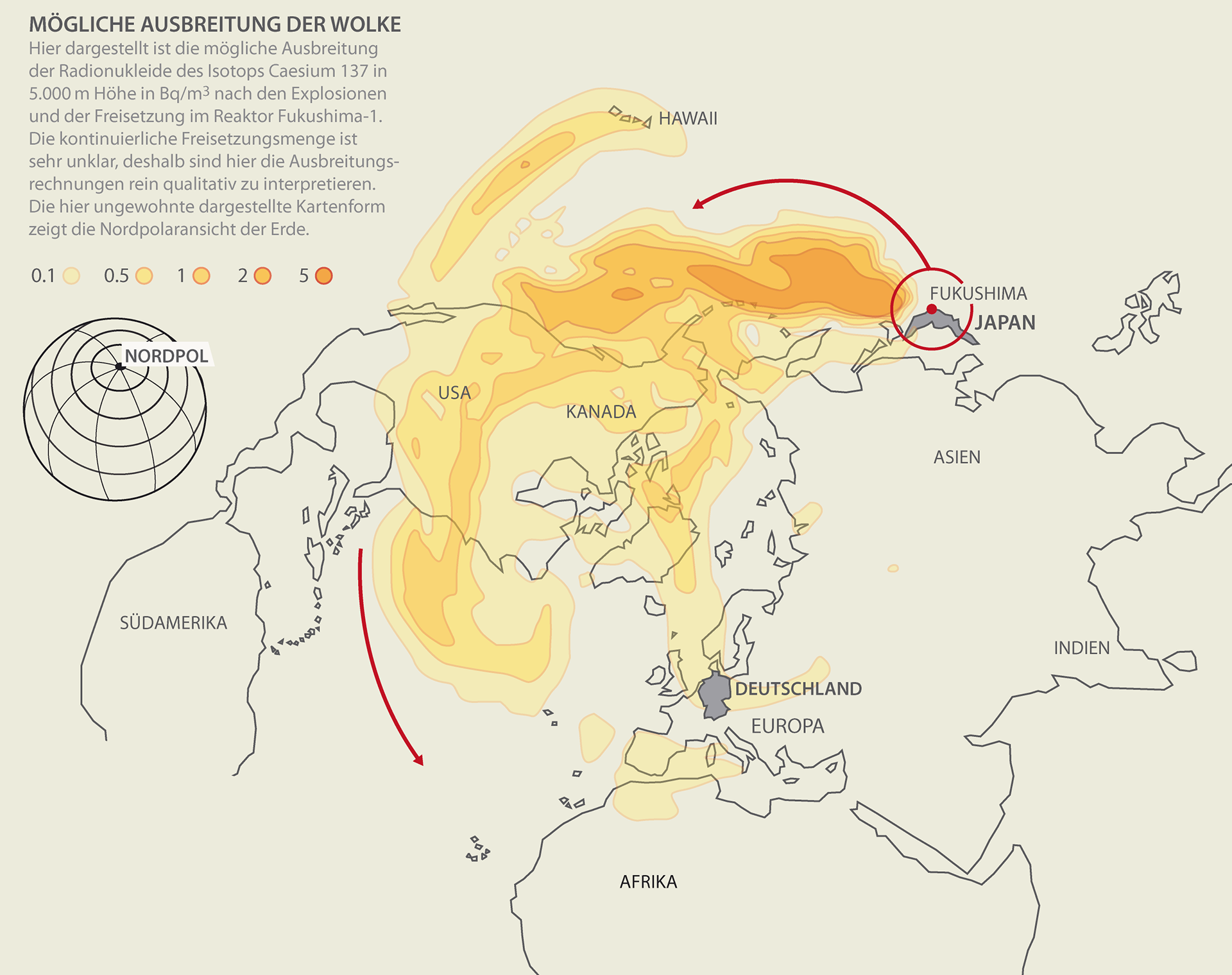

Dispersal of the radioactive cloud
![The core meltdown of Fukushima](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/14586d9e-a993-4069-b190-2d169e160092_rw_1920.png?h=bc7d0c9bc28a0d6b3095d79d4b330e77)

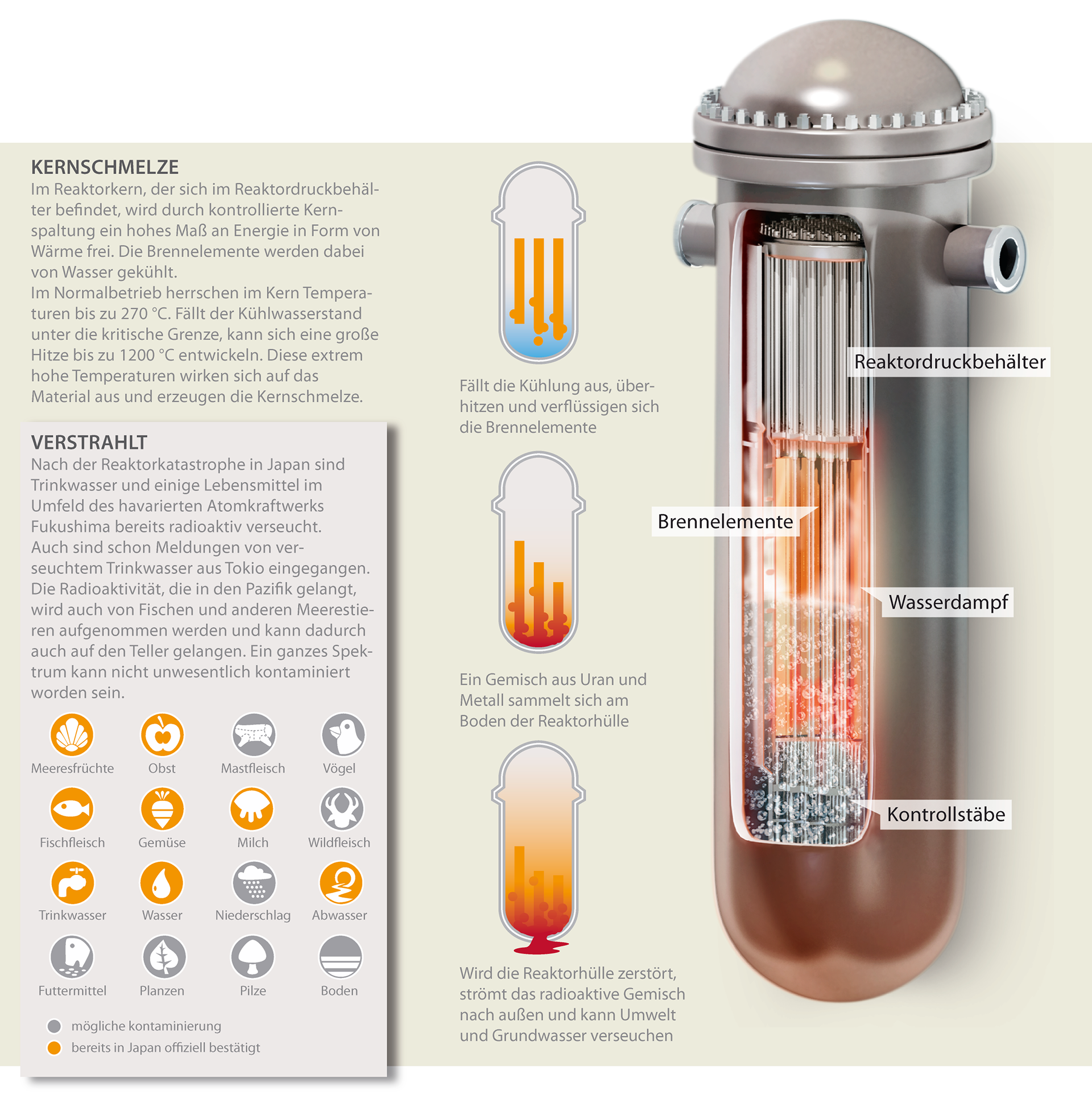

The core meltdown of Fukushima
![Function of a Geiger counter](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/8a855012-9d8f-4256-8866-e8fca55545cf_rw_3840.png?h=8d9819b31d4cc26698f03c95f9b44f9c)
Function of a Geiger counter
![Nuclear power plant site of Fukushima](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/c125c939-9683-4f9b-bbba-94a87a5a03de_rw_1920.png?h=17e70356d0557ab83adf9e22ea97c0cf)
Nuclear power plant site of Fukushima

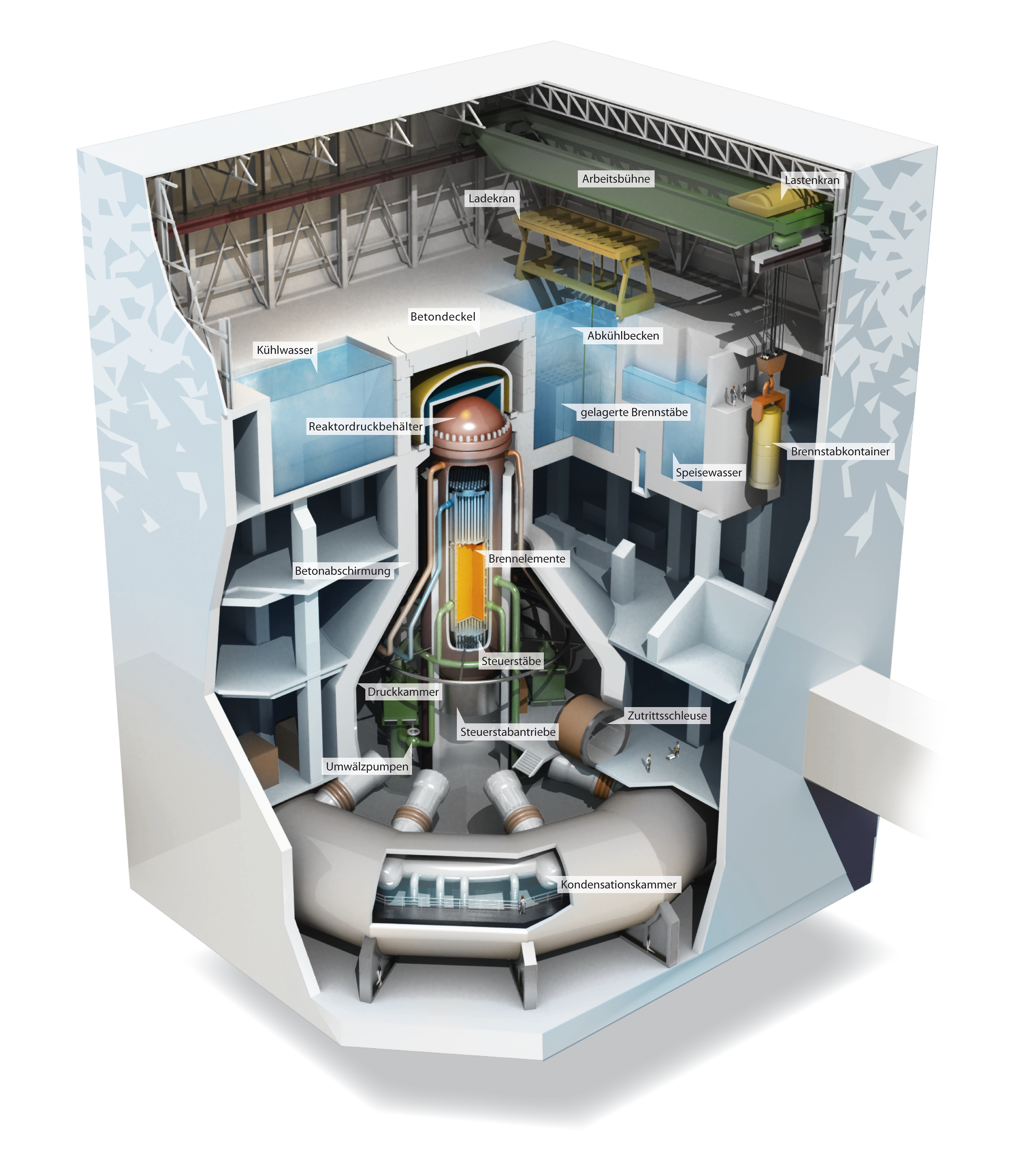

![Reactor Unit 04](https://cdn.myportfolio.com/2ffa55c2-892c-4078-98f1-47b807a56980/eff7d837-8530-4072-bc3e-af0a00c2fe1f_rw_3840.png?h=528486edbd3ffa7e3fbbed1d8ac70049)
